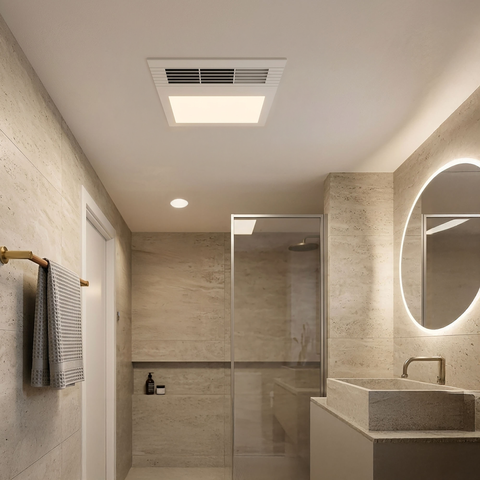

Extract Prime Mini EC 4in1 Bathroom Heater, Light and Exhaust - White
Details
Description
Bring premium comfort to smaller bathrooms with the Vencha Extract Prime Mini EC 4in1 Bathroom Heater, Fan, Light and Exhaust. Compact in size yet impressive in performance, this all-in-one unit combines 2000W PTC heating, a cooling fan, powerful exhaust and a bright 12W LED light to keep your bathroom warm, fresh and beautifully illuminated.
Its advanced EC motor is designed for efficient, quiet and low-maintenance operation, while the 350m³/h airflow helps clear steam and moisture with ease. With selectable 3CCT lighting in warm white, cool white and day light, an IPX4 rating and a 5 year warranty with 2 year in-home support, the Extract Prime Mini EC 4in1 delivers comfort, convenience and premium performance in a sleek, space-conscious design.
Important Note: When the exhaust function is switched on, it will override the heat function for safe and efficient operation.
Additional Features:
- Built-in Thermal Protection System
- Built-in 120 second Exhaust Run-On Timer
- Built-in 20 second Automatic Heat Cool Down Cycle
- Built-in 45-minute Safety Heat Shut-Off
- Backflow Prevention Shutter
| Code | 5501024 |
| Model | Extract Prime Mini EC 4in1 Bathroom Heater |
| Colour | White |
| Material Body | Polypropylene (PP) Housing |
| Material Face | PC |
| Voltage | 240v |
| Motor | EC Motor |
| Exhaust Fan | 20w |
| Airflow | 350m3/h |
| Cooling Fan | 20w |
| PTC Heating | 2000w |
| Light | 12w LED |
| Light Colour | 3CCT Selectable (3000K/4000K/5000K) |
| Output | 900/1000/950lm |
| Dimmable | Non Dimmable |
| IP Rating | IPX4 |
| Cut Out | 275mm x 275mm |
| Face Size | 300mm x 300mm |
| Depth | 170mm (*195mm Min Install Depth) |
| Duct Size | 100mm |
| Warranty | 5 Year (2 Year "In-Home" Warranty) |
| Parts Supplied: | 1 x 4 Gang Wall Switch 1 x 3m Aluminium Duct 1 x External Grille 1 x Cut Out Template 1 x Backflow Prevention Shutter |
| Safety | Built-in Thermal Protection System |
